● The entire system’s electrical control cabinet utilizes an outdoor welded cabinet design with an IP54 protection rating.
● The main power supply to the electrical control cabinet is a three-phase, five-wire system with a rated voltage of AC380V, a rated frequency of 50Hz, and a maximum load current of 200A.
● Le fil noir à l'intérieur de l'armoire est la ligne d'alimentation AC380V, le fil jaune est la ligne de contrôle AC220V, le fil bleu est la ligne de contrôle DC24V, et la ligne jaune-vert est la ligne de terre.

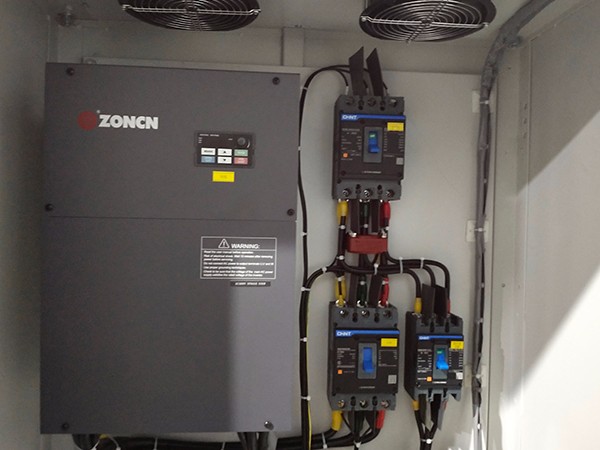

● The main components inside the cabinet include a molded case circuit breaker, a miniature circuit breaker, an intermediate relay, an AC contactor, and a frequency converter.
● The frequency converter inside the cabinet uses the Z2000 series, an economical, high-performance vector frequency converter.
● The cabinet features buttons, indicator lights, and an advanced operation panel. This panel, connected to the electrical components within the frequency converter, displays the operating status of the frequency converter and controls the start and stop of the frequency converter.
