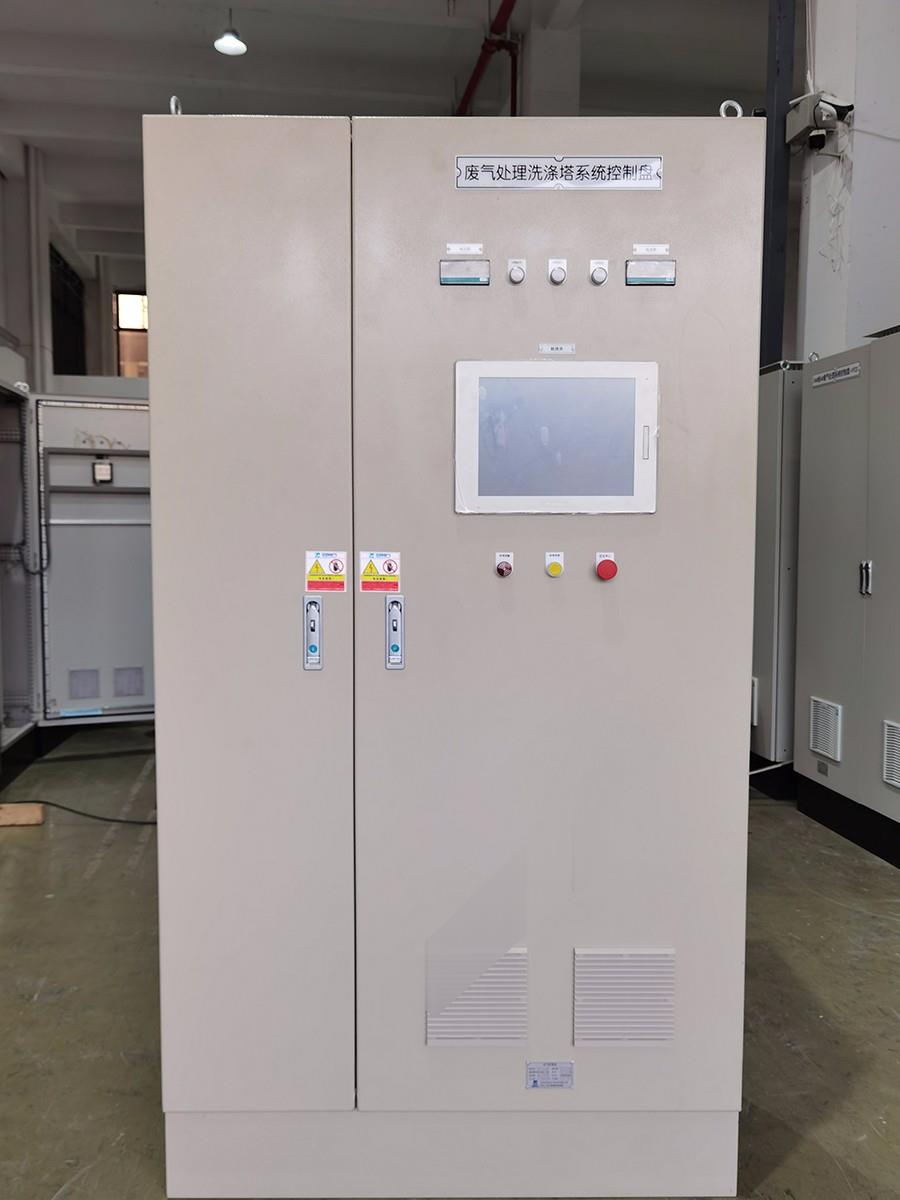

● The entire system’s electrical control cabinet utilizes an indoor welded cabinet design with an IP40 protection rating.
● The main power supply for the control cabinet is single-phase AC380V, rated at 50Hz, with a maximum load current of 250A.
● The black wire in the cabinet is the AC380V power line, the yellow wire is the AC220V control line, the blue wire is the DC24V control line, and the yellow-green line is the ground line.
● The cabinet’s main components include molded case circuit breakers, miniature circuit breakers, intermediate relays, inverters, and PLCs.
● Cabinet components utilize brands such as Fuji, AB, and MV, ensuring system stability and a longer service life.
● The entire system utilizes the AB ControlLogix series CPU, featuring a fully modular design. From the frame power supply and module type to memory, number of controllers, and network type, everything can be selected based on application requirements.
● All panel parameters can be modified in real time, and all alarm information can be viewed on the alarm screen, making it easy to handle abnormal situations. In the event of an emergency, the PLC cabinet’s emergency stop button enables rapid shutdown.
