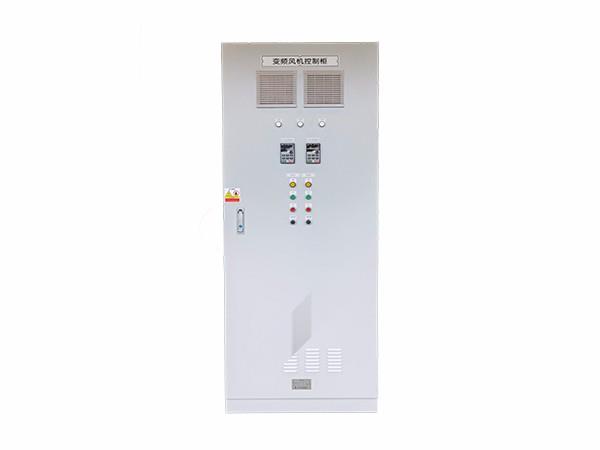

● The entire system’s electrical control cabinet is an indoor welded cabinet with an IP40 protection rating.
● The main power supply to the electrical control cabinet is a three-phase, five-wire system with a rated voltage of AC380V, a rated frequency of 50Hz, and a maximum load current of 63A.
● Черный провод внутри шкафа - это линия питания AC380V, желтый провод - линия управления AC220V, а желто-зеленый провод - линия заземления.
● Основные компоненты внутри шкафа включают автоматический выключатель в литом корпусе, миниатюрный автоматический выключатель, промежуточное реле, контактор переменного тока и преобразователь частоты.

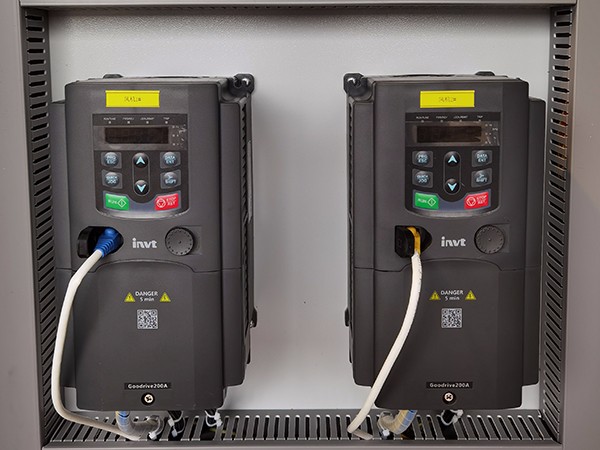

● The frequency converter inside the cabinet is a 200A series. This product utilizes sensorless vector control technology that is fully synchronized with the most advanced international technology. It utilizes a DSP control system and enhances product reliability and environmental adaptability, resulting in optimized functionality, greater flexibility, and more stable performance.
● The cabinet features buttons, indicator lights, and an advanced operation panel. This panel is connected to the electrical components inside the frequency converter cabinet and displays the operating status of the cabinet and also controls the start and stop of the frequency converter.
